Pitot static system blockages. A clogged tube can lead to erratic readings or no reading at all. Various implementation described herein are directed to a method for identifying a blockage in a pitot-static system. Static port remains unobstructed.
The major components of the pitot-static system are the impact pressure chamber and lines and the static pressure chamber and lines each of which are subject to total or partial blockage by ice dirt andor other foreign matter. Acts like an altimeter and airspeed increases with altitude. During preflight make sure the pitot tube cover is removed.
An aircraft pitot-static system comprises a number of sensors which detect the ambient air pressure affected pitot pressure and unaffected static pressure by the forward motion of the aircraft. Pitot tube drain blocked first. Pitot blocked drain open.
Insects ice debris and other environmental factors can clog the tube. The table above summarizes these 12 mishaps. This includes the Air France 447 accident involving an Airbus A330 as well as Northwest Flight 6231 a Boeing 727 which often is referred to as the poster-child of pitot-static accidents.
If water enters the front of the tube or condenses inside the ram air chamber it can drain out. A determination is made as to whether a blockage has occurred in the pitot-static system based on the identified pressure fluctuations. Errors stem from blockages.
In this example Fig 4-1 the aircraft is at an altitude of 10000 feet and flying at 130 knots true airspeed. These pressures are used on their own or in combination with each other to. If the pitot tube and its drain hole are blocked then as the aircraft climbs the trapped air in the pitot system will be compared against decreasing air.
Many pitot tubes also include a static port. Fig 4-32 Pitot tube drain blocked followed by ram air port at 10000 feet and at a true airspeed of 130 knots.
Cfi Brief Pitot Static Systems And Flight Instruments Part Iii Learn To Fly Blog Asa Aviation Supplies Academics Inc
Pitot Static System Failure Avweb
Pitot Static Flight Instruments Blockage Of The Pitot Static System
Pitot Static System Wikipedia
Systems Malfunctions
Articles Pitot Static System Blockages And Failures Page 1
Pitot Static Flight Instruments Blockage Of The Pitot Static System
Cfi Brief Pitot Static Systems And Flight Instruments Part Iii Learn To Fly Blog Asa Aviation Supplies Academics Inc
Pitot Static Flight Instruments Blockage Of The Pitot Static System
Questions From The Cockpit Break Glass In Case Of Emergency General Aviation News
Iflycoast Com
Pitot Static System Errors In Aviation Flight Training Flightinsight Youtube
Pitot Static Blockages Aviation Safety
Articles Pitot Static System Blockages And Failures Page 11
Pitot Static System Define Aviation
Pitot Static Systems
Airspeed Indicator
Pitot Static System Failures Aviation Safety
Flight Instruments
Aircraft Systems And Instruments 1 Pts Standards Exhibits
The Airspeed Indicator Aerotoolbox
Pitot Static System And Instruments
Pressure Instruments Chapter Ppt Video Online Download
1
Pitot Static Systems
Pitot Static System Errors Youtube
How It Works Pitot Static System Aopa
Ppt Basic Airplane Instruments Powerpoint Presentation Free Download Id 6775379
Cfii Pts Technical Subject Areas Aircraft Flight Instruments And Navigation Equipment Pitot Static System
What Happens When Your Pitot Tube Ices Over Boldmethod
The Dramatic Effects Of Pitot Static System Blockages And Failures References Pdf Free Download
Systems Malfunctions
Pitot Tube And Static Port Errors When Blocked Runup Ca
Pitot Static System Youtube
Pitot Static System Wikipedia
Instrument Systems Oralsipc And Knowledge Test Randy Schoephoerster
Pitot Static System Lesson
Airspeed Indicator Altimeter And The Vsi Cfi Steph
Nashvillecfi Com Instrument Airplane Instruments
Pitot Static Blockages Aviation Safety
C 172rg Aircraft Systems Divergent Aerospace Ltd
What Happens When Your Pitot Tube Ices Over Boldmethod
Pitot Static System Wikiwand
Pdf Important Pitot Static System In Aircraft Control System
Courseware Cutm Ac In
Ppt Flight Instruments Powerpoint Presentation Free Download Id 784487
Warm Up 3 16 10 Minutes Utilizing Your Notes And Past Knowledge Answer The Following Questions Describe The Purpose Of The Vsi Describe The Differential Ppt Download
Pdf Important Pitot Static System In Aircraft Control System
1
The static port on an Airbus A320.

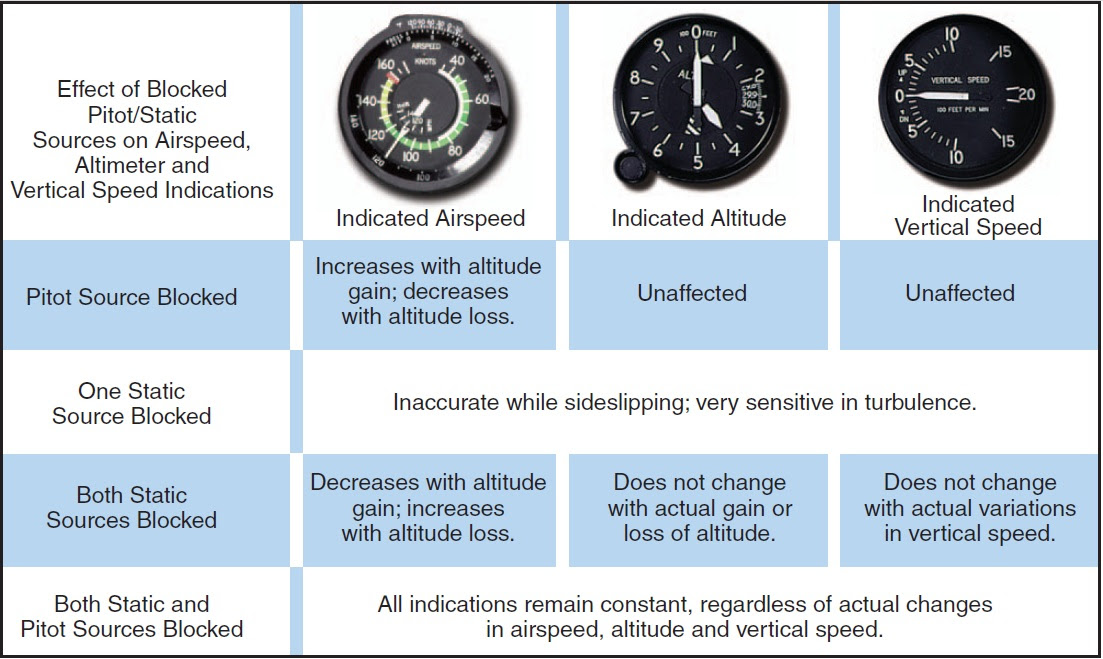

These pressures are used on their own or in combination with each other to. An aircraft pitot-static system comprises a number of sensors which detect the ambient air pressure affected pitot pressure and unaffected static pressure by the forward motion of the aircraft. Fig 4-32 Pitot tube drain blocked followed by ram air port at 10000 feet and at a true airspeed of 130 knots. Blockage may be caused by moisture including ice dirt or even insects. Pressure fluctuations in the pressure signal are identified 510. Blockages eg pitot cover wasp nests mud dirt and ice formation OR leaks in the pitot-static sysem will cause inaccuracies in pressure instruments ie the ASI VSI and altimeter. Acts like an altimeter and airspeed increases with altitude. These pressures are used on their own or in combination with each other to. Static port blocked but ram air and Pitot tube drain remain unobstructed.

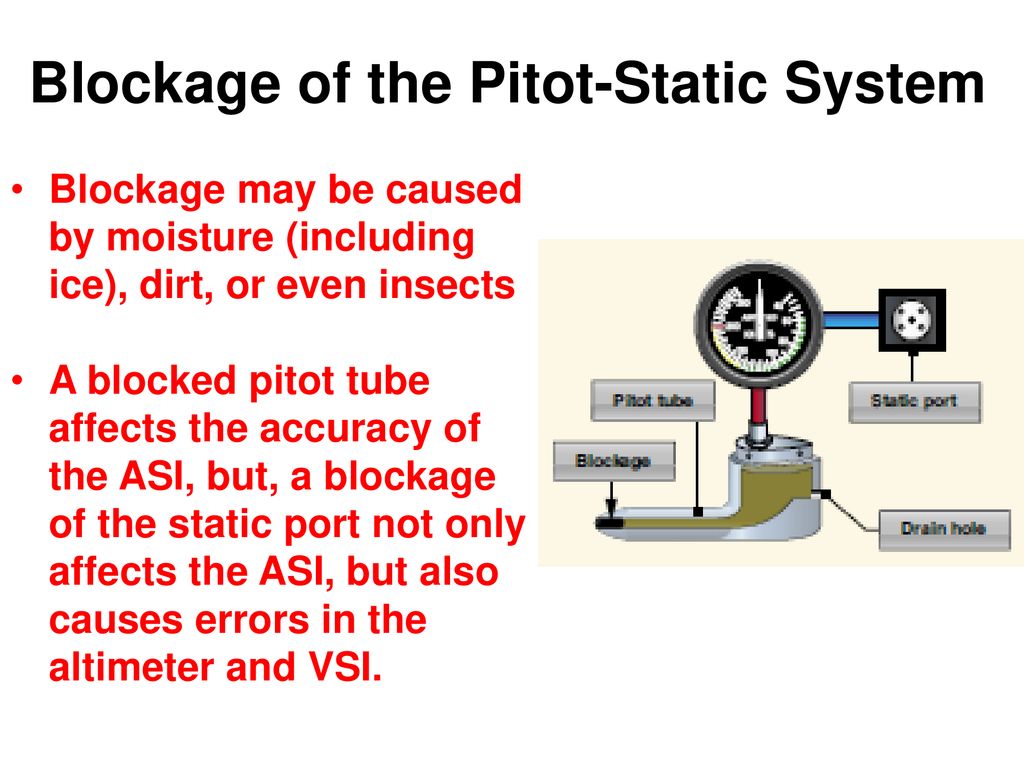

The table above summarizes these 12 mishaps. In the pitot tube above ram air enters through the front of the tube flows to the back of the chamber and flows through plumbing to your airspeed indicator. A blocked pitot tube will only affect the airspeed indicator. In this video I discuss the Pitot-Static System and how the instruments react to blockages in the system. Pitot-static system The source of the pressure for operating the airspeed indicator the vertical speed indicator and the altimeter is the pitot-static system. During preflight make sure the pitot tube cover is removed. Static port remains unobstructed.
